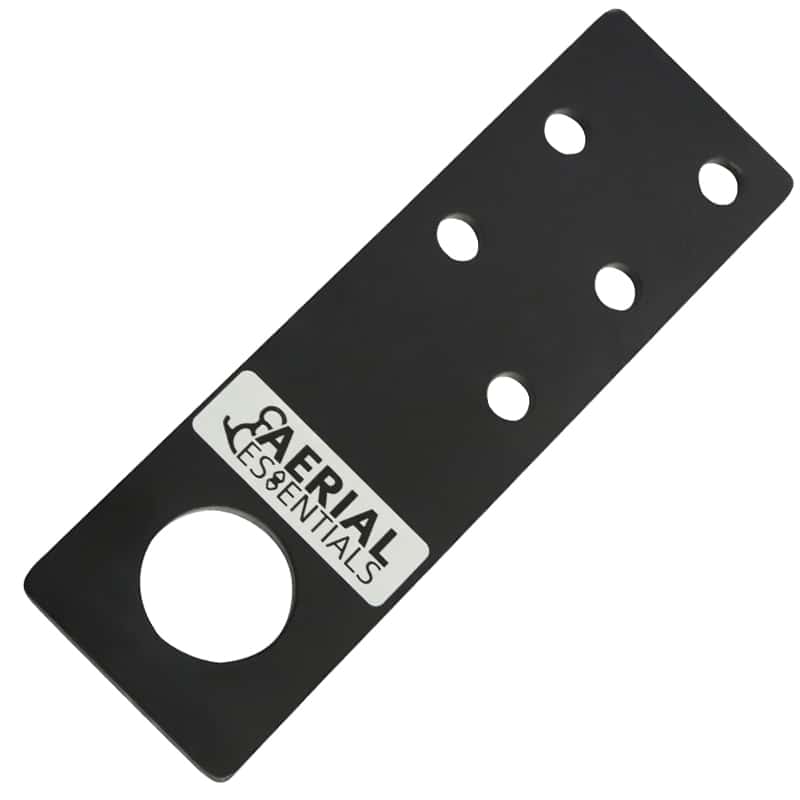

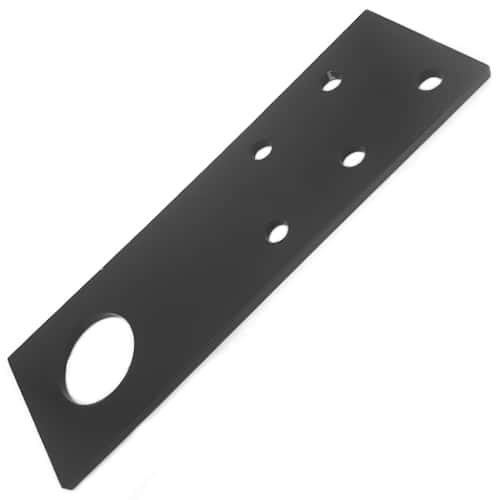

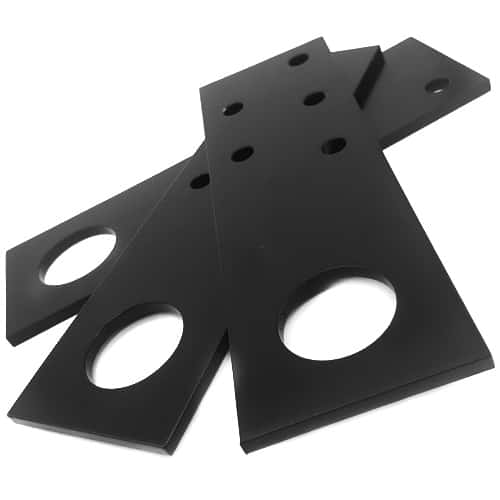

Rigging Plate

Designed for secure attachment to structural wood beams, this stainless steel rigging plate provides a strong, permanent anchor point for aerial apparatus.

Fabricated from ¼” stainless steel, this plate is corrosion-resistant, durable, and built for long-term performance. The 1.75” bottom hole allows for clean, easy connection of carabiners, shackles, or other rigging hardware.

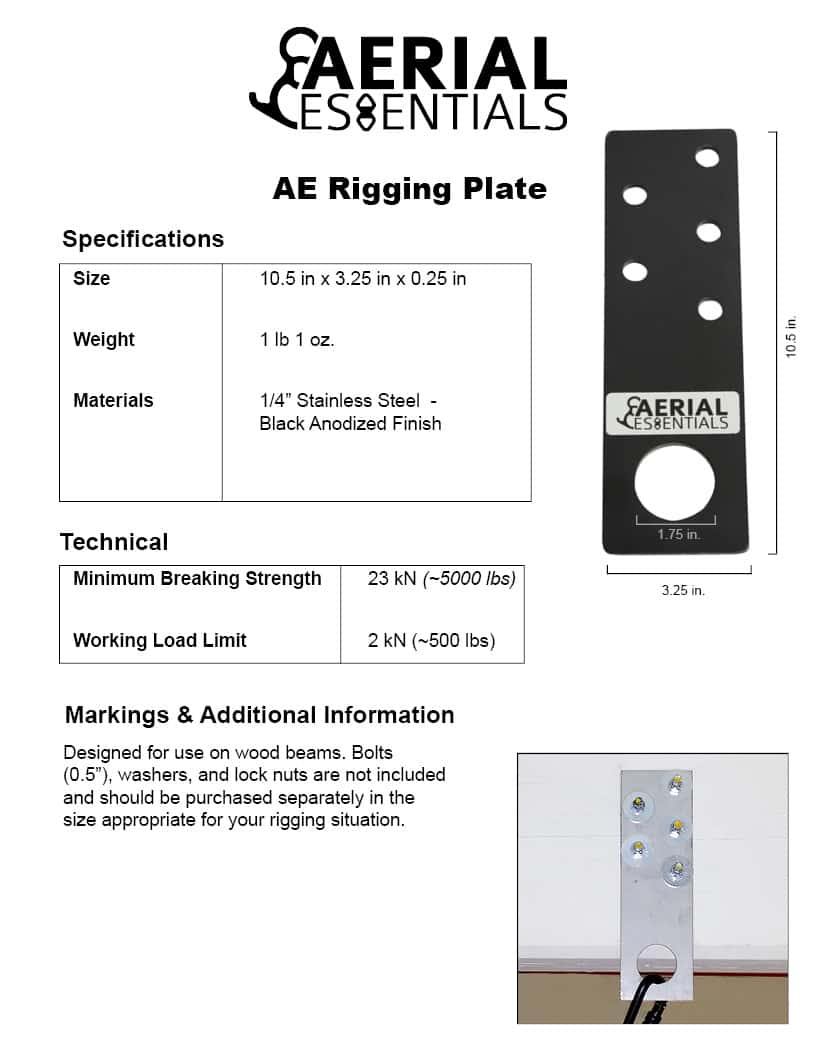

Specifications:

• ¼” thick stainless steel

• 1.75” rigging hole

• 10.5” overall height

• 3.25” width

• Tested to over 5,000 lbs

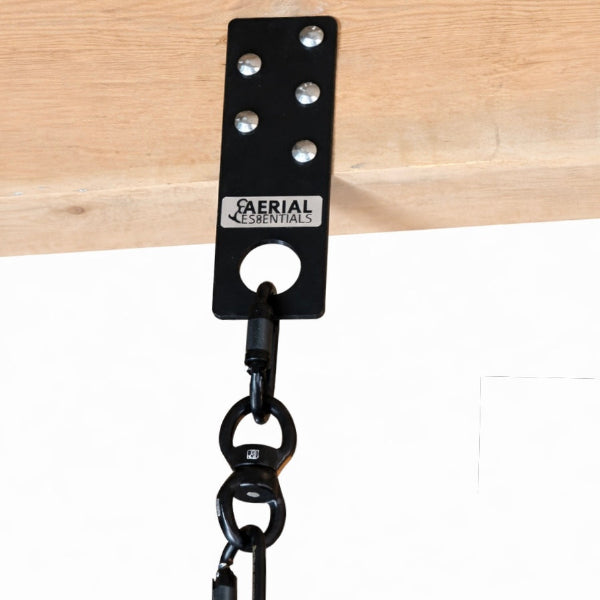

Installs using ½” bolts (not included) directly into properly sized structural wood beams. We recommend fender washers, and lock nuts on the opposing side of the beam.

Strong, straightforward, and reliable — ideal for studios or permanent home installations where a fixed rigging point is required.

Installation must be performed into structurally sound beams and in accordance with safe rigging practices.
